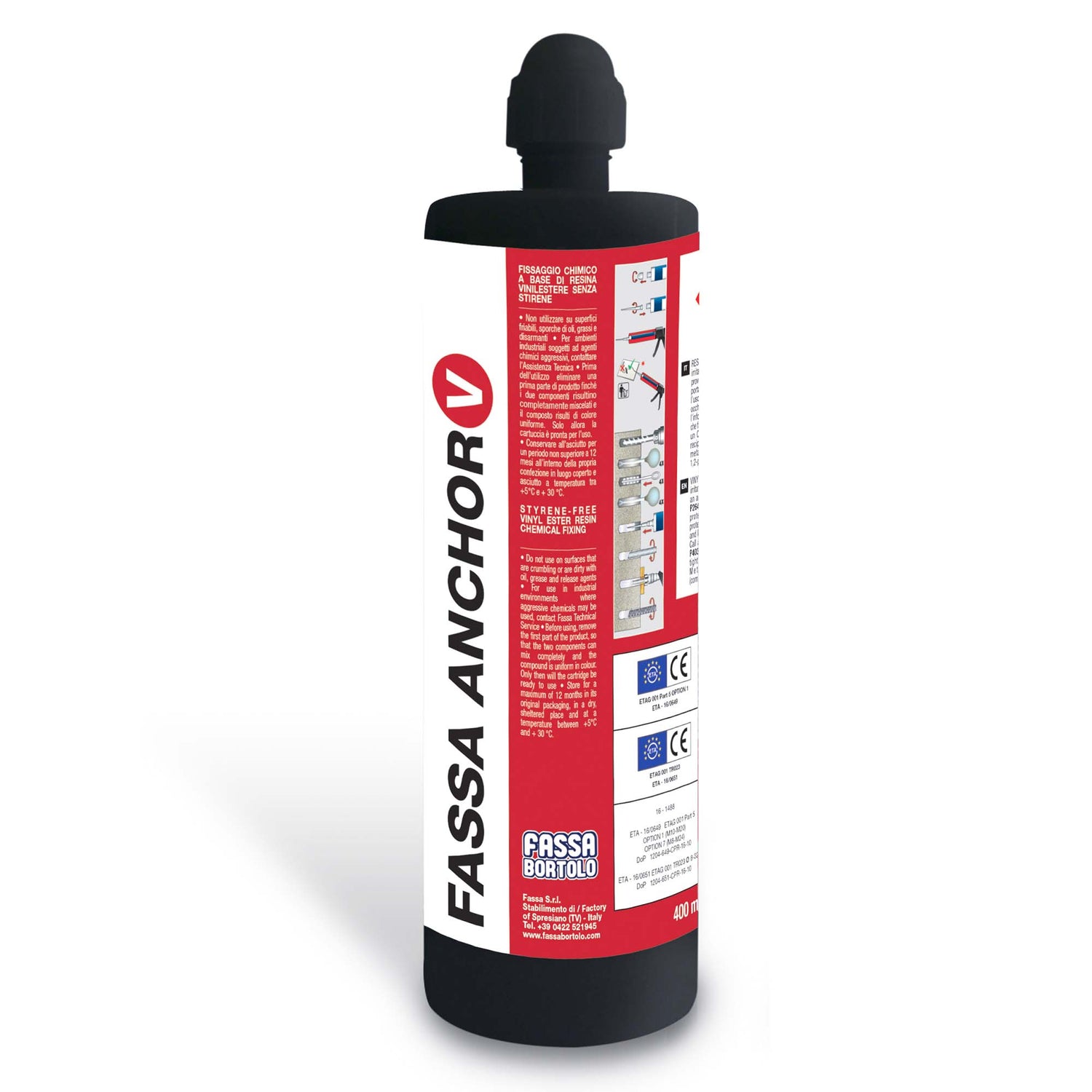

Chemical Fixing Fassa Anchor V

The Chemical Fixing Fassa Anchor V It is a styrene-free vinylester resin-based chemical fastener for structural loads.

Fassa Anchor V Chemical Fixing – Safe and Versatile Structural Anchoring

Fassa Anchor V Chemical Fixing is the ideal solution for high-performance structural anchoring on various building materials. Formulated with a styrene-free vinylester resin, it guarantees reliability, versatility of use and total absence of harmful emissions, adapting perfectly to multiple needs in the professional and residential fields.

✅ Advantages of Fassa Anchor V Chemical Fixing

✔ Suitable for cracked and non-cracked concrete, stone, solid/perforated brick and wood

✔ ETA approvals for structural uses (Option 1 and 7 – EAD 330499-01-0601 / EAD 330087-00-0601)

✔ Compatible with M8-M30 threaded rods and Ø8-Ø32 improved grip rods

✔ Also applicable in wet or flooded holes (threaded rods only)

✔ C1 and C2 seismic anchors for high performance even in high-risk areas

✔ High dielectric power: ideal for environments with stray currents

✔ Also usable for fixing FASSAWRAP GLASS and CARBON structural connectors

🔧 Ideal Applications

🔹 Structural anchoring of reinforced concrete bars

🔹 Installations in stone, perforated or semi-solid bricks

🔹 Applications on wood and mixed building materials

🔹 Reinforcement interventions with FRP systems (fiberglass or carbon)

🔹 Installations subject to seismic stress or vibrations

📊 Technical Specifications

🔹 Formulation: Styrene-free vinyl ester resin

🔹 Bar compatibility: threaded M8–M30 / improved grip Ø8–Ø32

🔹 Conditions of use: dry, wet concrete or flooded hole

🔹 Applications: horizontal and vertical axis

🔹 Approvals: ETA-16/0649, ETA-16/0651

🔹 Seismic category: C1 (M12–M20), C2 (M12–M16)

🎁 Supply and Accessories Included

• 400ml cartridge

• Static mixer included

• Pack of 12 pieces

📍 Where to buy Fassa Anchor V chemical fastener?

Available at all EmmetiStore stores: trust Fassa professional quality for your anchoring and consolidation work.

CLICK HERE FOR THE TECHNICAL DATA SHEET
