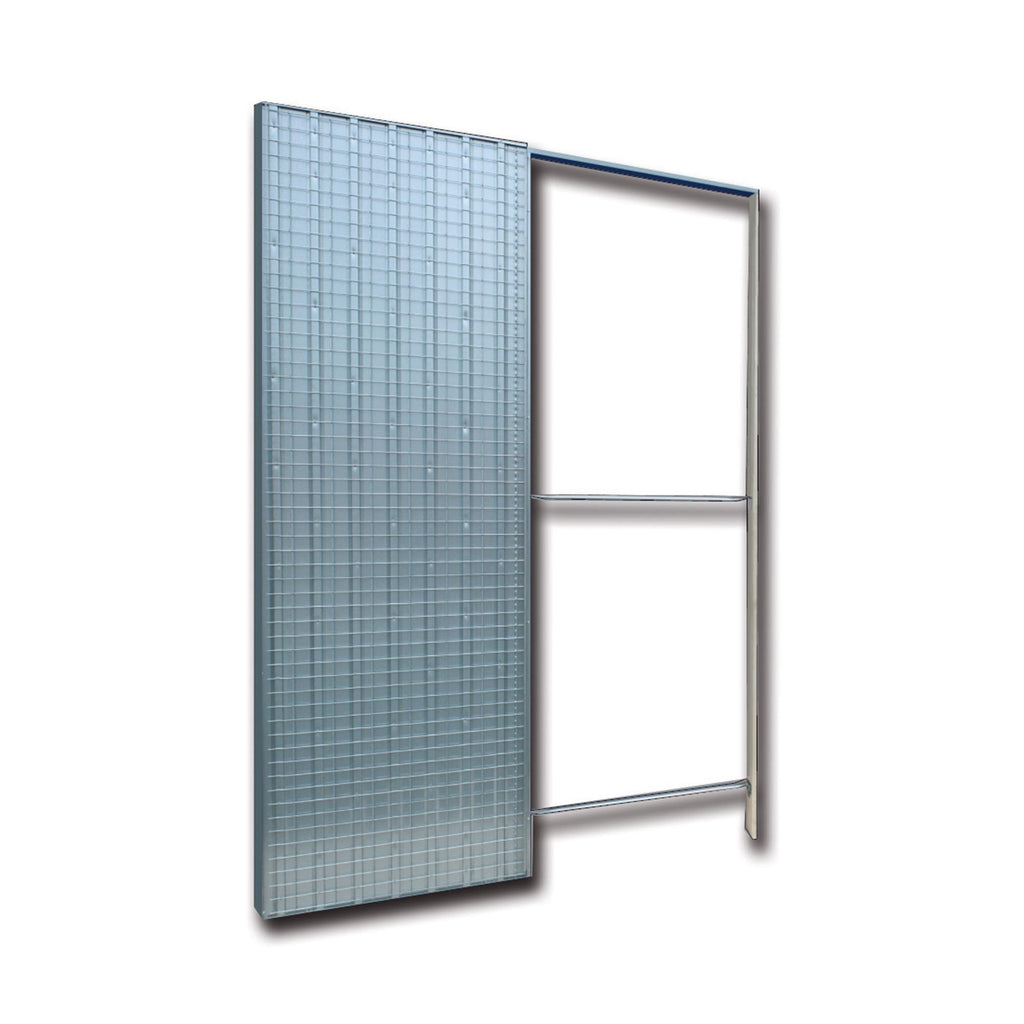

The Counterframe Doortech Plaster h2100 has an internal seat equal to 56/70 mm for masonry walls with a nominal finished thickness equal to 105/125 mm.
Counterframe Doortech Intonaco h2100: Effective and Robust Solution for Masonry Walls
The Counterframe Doortech Plaster h2100 is the ideal choice for those who want to install pocket sliding doors on brick walls. Designed to offer resistance, durability and versatility, this counterframe has an internal seat of 56/70 mm, perfect for walls with a nominal finished thickness of 105/125 mm. The dimensions of the opening range from 600 mm to 1200 mm for the single door and from 1200 mm to 2400 mm for the double door, with an available height of 2000 mm or 2100 mm.
Advantages of the Subframe Doortech Plaster h2100:
• 10 year warranty Scrigno: quality assurance and durability over time.
• Load capacity up to 100 kg: The system is designed to support large doors without compromising functionality.
• Aluminum sliding guide: ensures smooth and silent movement thanks to the high-quality 6060 alloy, which resists daily wear and tear.
• Safe and stable assembly: the insertion of PVC lateral spacers and a solid fixing system offer stability to the wall structure.
Technical Specifications:
• Side flanks in galvanized sheet metal (5/10 mm thick) with horizontal reinforcements for maximum rigidity.
• Lower base with provision for fixing to the ground and guide for the door.
• Top in galvanized sheet metal with integrated guide holder for perfect sliding of the door.
• Little bridges for a secure fixing to the masonry structure.
• Front mask for containment and alignment during assembly.
Cart Kit:
• Pair of trolleys with a maximum capacity of 100 kg per pair.
• Loaded nylon trolley body to resist wear.
• Galvanized sheet metal suspension plate with contoured design for easy installation.
• Nylon stop with rubber to cushion the movement of the door.
• Height-adjustable door guide nose to adapt to different floor heights.
Why Buy the Counterframe Doortech Plaster h2100:
The counterframe Doortech It offers strength and practicality, ensuring smooth movements and simple installation. Ideal for those looking for a quality solution for installing sliding doors in masonry, with a long life and a 10-year guarantee, which testifies to its reliability.
Where to buy:
The Counterframe Doortech Plaster h2100 It is available at all points of sale EmmetiStore or directly on our online site EmmetiStore.
Click here for the technical sheet
Click here for frame size
Frame Assembly Instructions
Door Assembly Instructions
